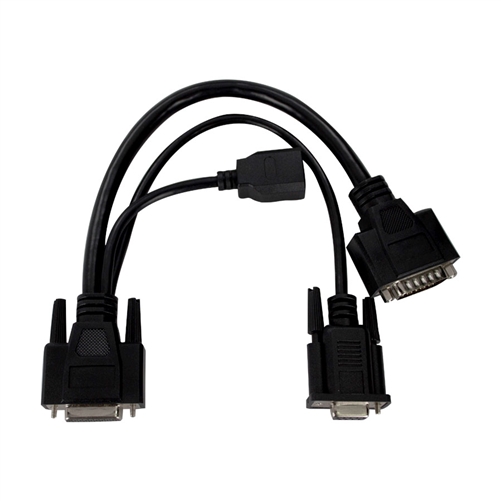

Cable HD-26F Input SignalHD-26F In Pin #HD-26M Out Pin #DB-9M Pin #
HS CAN 7 L121
HS CAN 3 L27
HS CAN 4 L32
HS CAN 6 L48
HS CAN 1 L54
MS CAN L65
HS CAN 2 L76
HS CAN 5 L83
AOUT197
GND10105
HS CAN 7 H / SW CAN 11126
HS CAN 3 H1217
HS CAN 4 H1312
HS CAN 6 H / SW CAN 21418
HS CAN 1 H1514
MS CAN H1615
HS CAN 2 H1716
HS CAN 5 H1813
V BATT1919
AOUT 2208
AOUT 3219
LIN2222, 251
PWMIO/AIN 1232
PWMIO/AIN 2243
PWMIO/AIN 3254
PWMIO/AIN 4266
Cable HD-26M SignalHD-26M In Pin #RJ-45 Pin #
ETH TX +11
ETH TX –92
ETH RX +113
ETH RX –206
